Lecture 05: Machine-Level Programming 1: Basics

History of Intel processors and architectures



Intel x86 Processors

Complex instruction set computer (CISC)

• Many different instructions with many different formats
• Hard to match performance of Reduced Instruction Set Computers (RISC)



2015 State of the Art

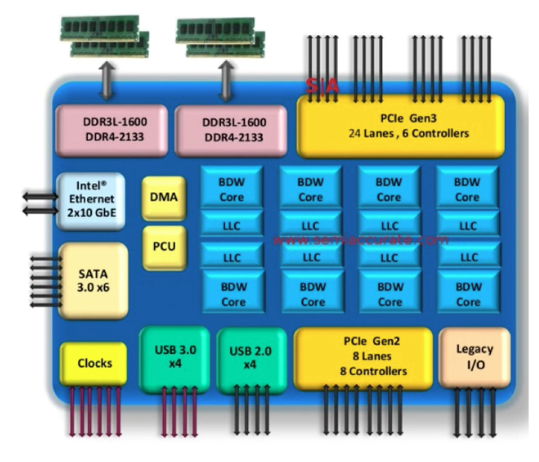

Core i7 Broadwell 2015

• DDR : DRAM (메인 메모리)로 이어진다
• PCI : Peripheral Devices로 이어진다
• SATA : 여러 디스크로 이어진다
• Ethernet : 네트워크로 이어진다





Our Coverage

IA32

• The traditional x86

x86-64

• The standard

gcc hello.c
gcc -m64 hello.c







C, assembly, machine code



Definitions

Architecture (ISA) : The parts of a processor design that one needs to understand or write assembly/machine code

• Examples : instruction set specification, registers

Microarchitecture : Implementation of the architecture

• Examples : cache sizes and core frequency

Machine Code : The byte-level programs that a processor executes

Assemly Code : A text representation of machine code

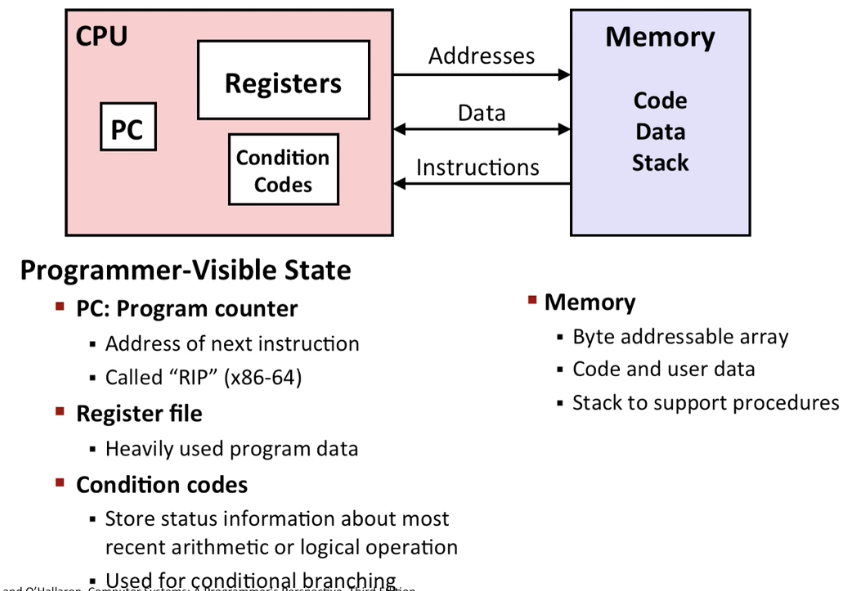

Assembly/Machine Code View

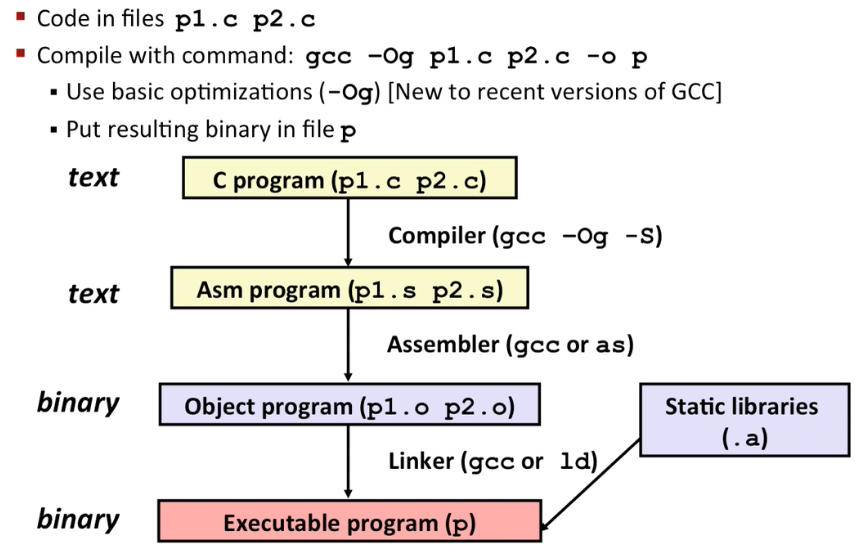

Turning C into Object Code

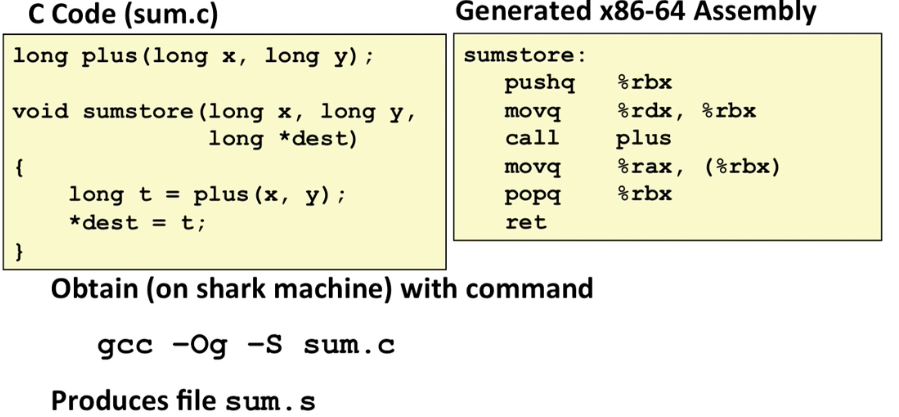

Compiling Into Assembly

Shark machine이 아니면 전혀 다른 결과가 나올 수 있다





Assembly Characteristics: Data Types





Assembly Characteristics: Operations

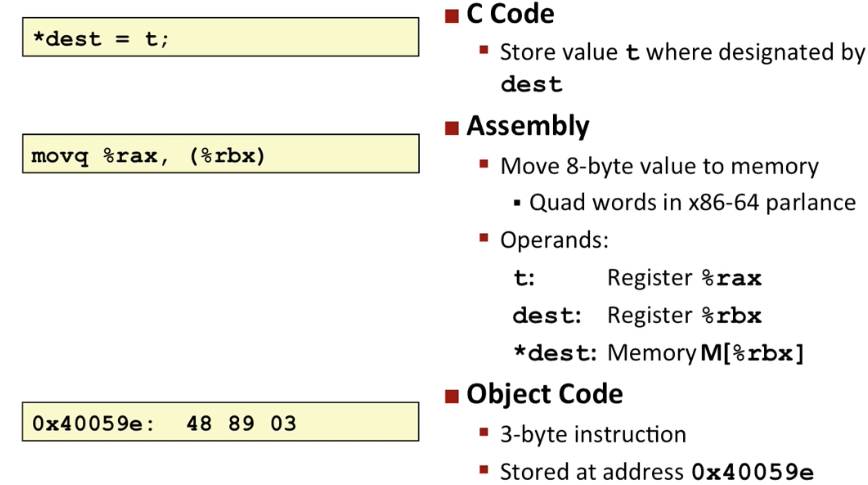

Machine Instruction Example

Assembly code 레벨에서는 변수명 등은 전혀 알 수 없다

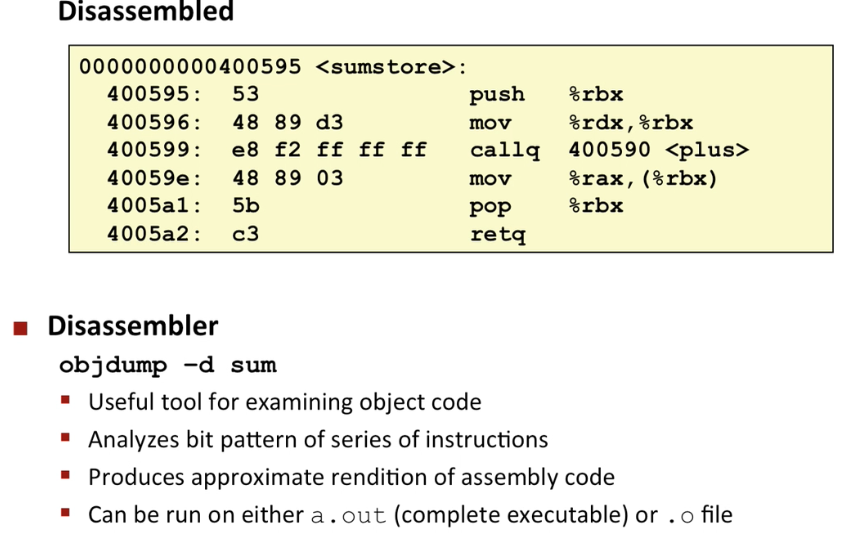

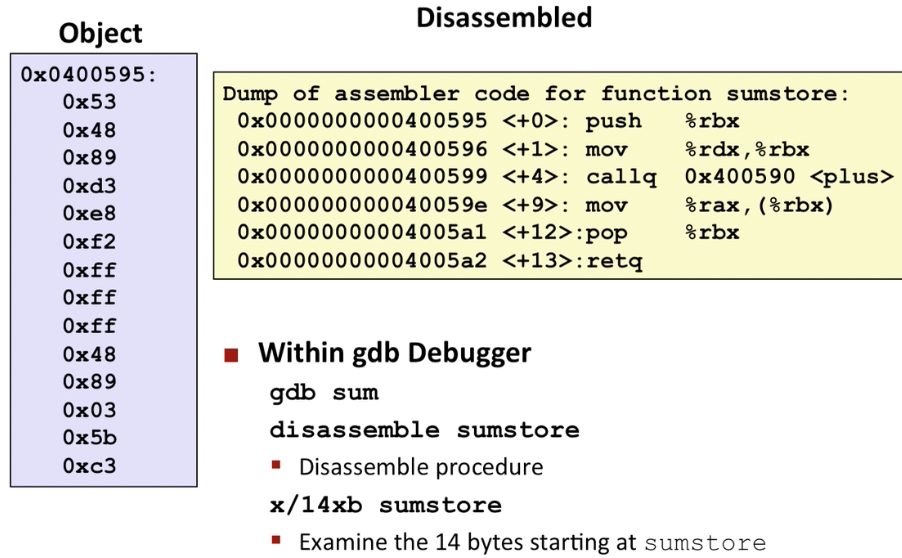

Disassembling Object Code

objdump를 통해 볼 수 있는 코드





Alternate Disassembly

gdb를 통해 볼 수 있는 코드





Assembly Basics: Registers, operands, move

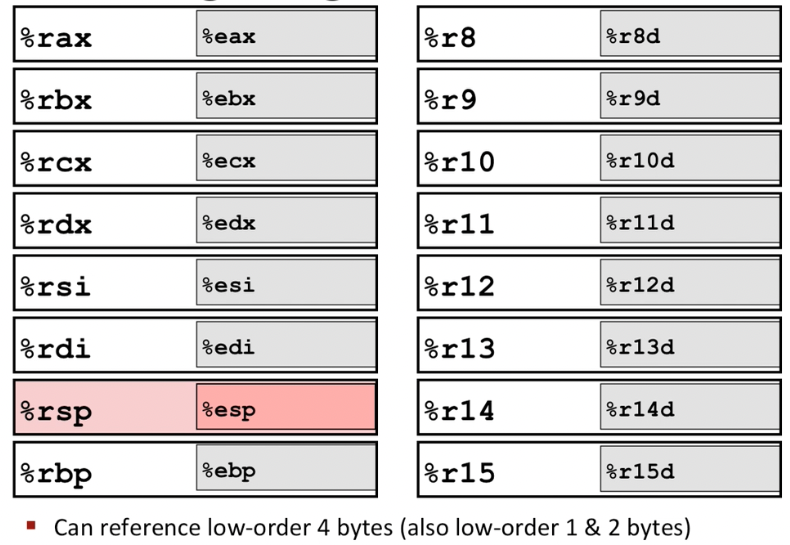

x86-64 Integer Registers

%r으로 시작하면 64bit, %e로 시작하면 32bit

• rsp : stack

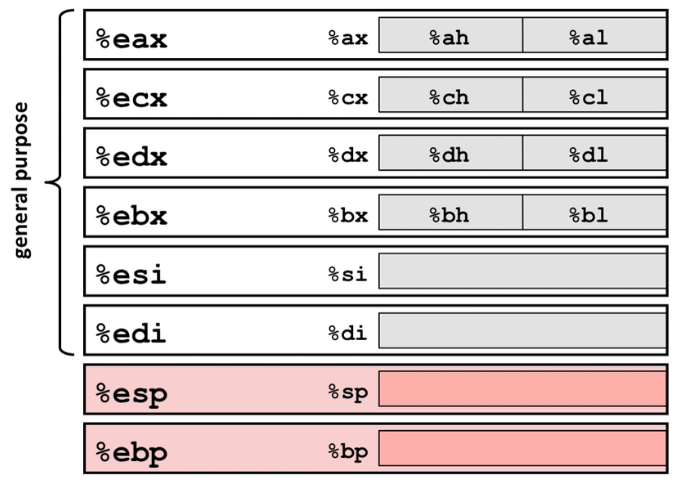

Some History: IA32 Registers

16bit, 8bit도 과거에는 존재했다

• esp : stack pointer
• ebp : base pointer

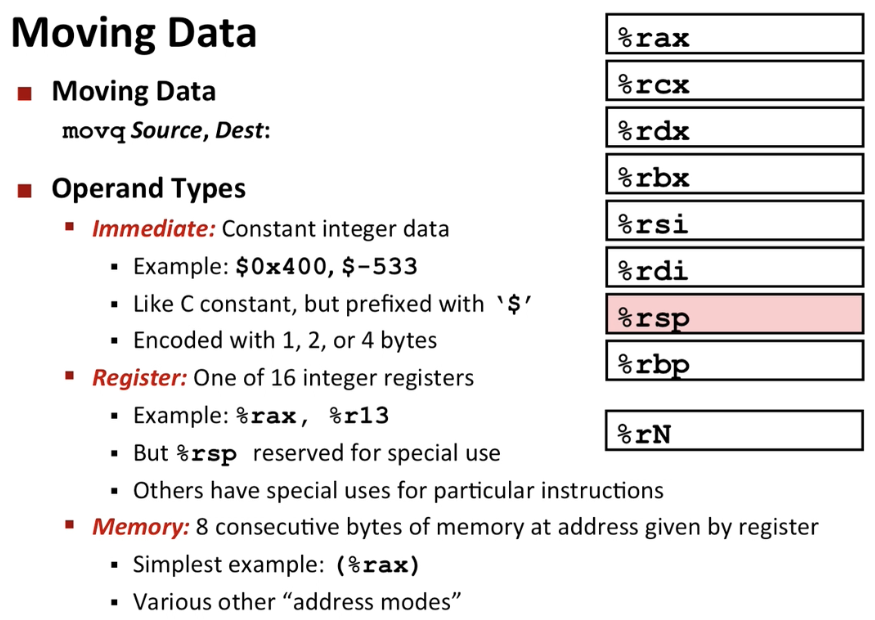

Moving Data

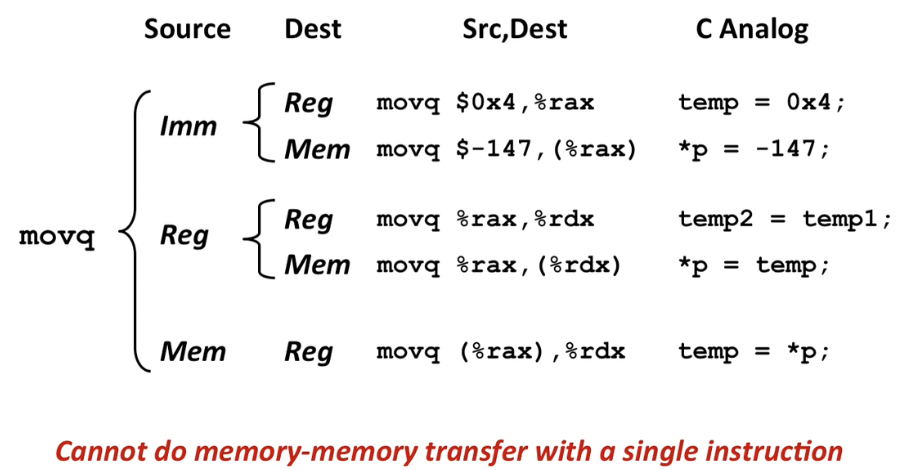

movq Operand Combinations

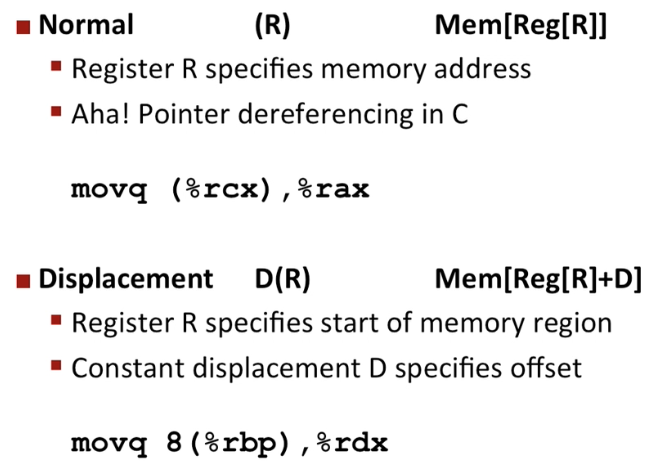

Simple Memory Addressing Modes

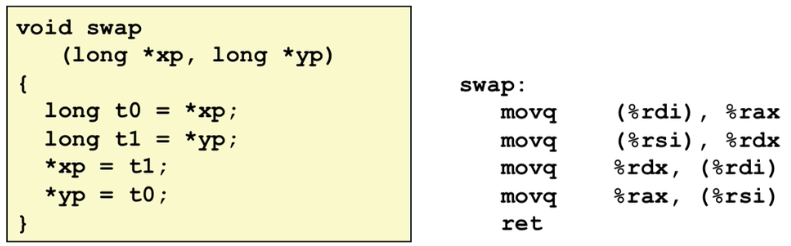

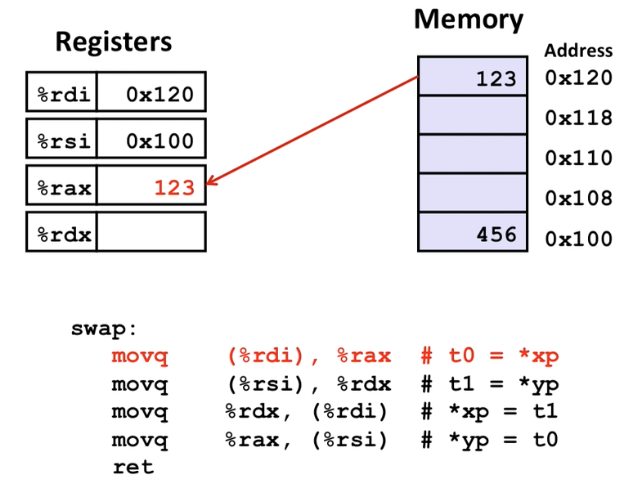

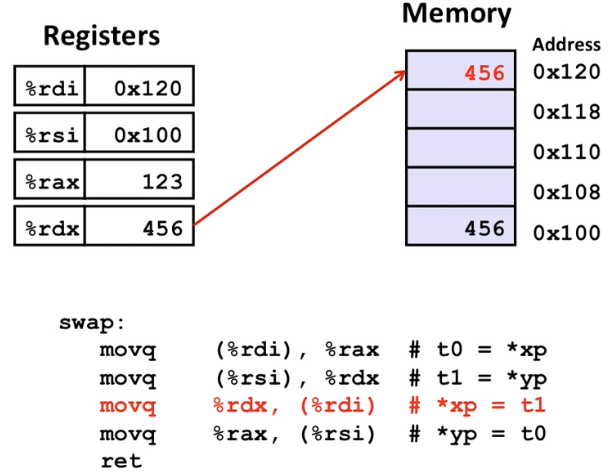

Example of Simple Addressing Modes

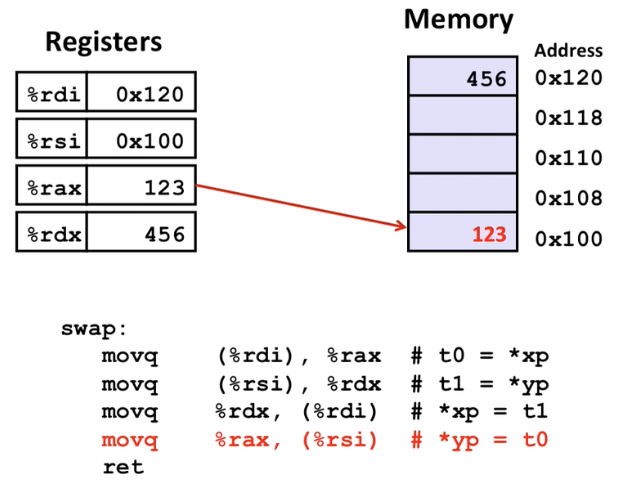

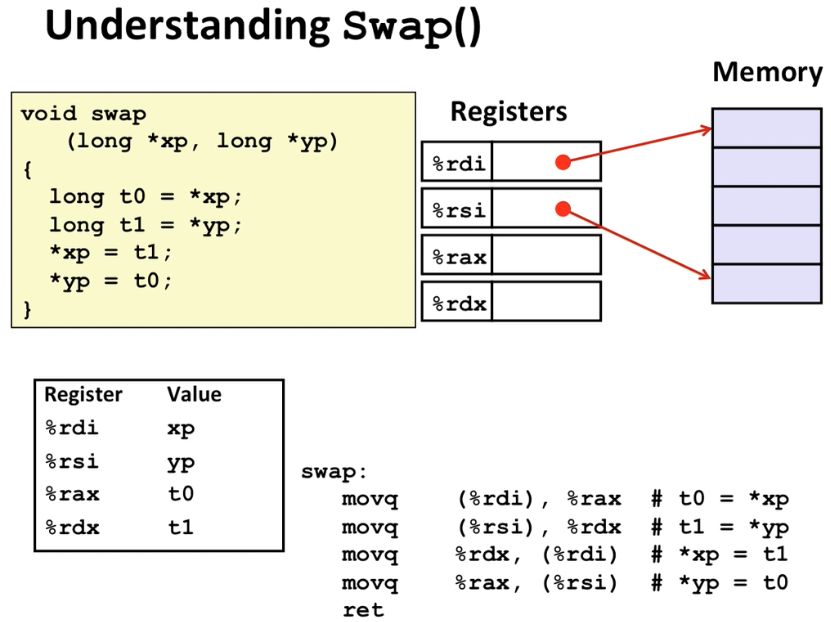

%rdi는 첫번쨰 인수, %rsi는 두번째 인수를 받는 레지스터

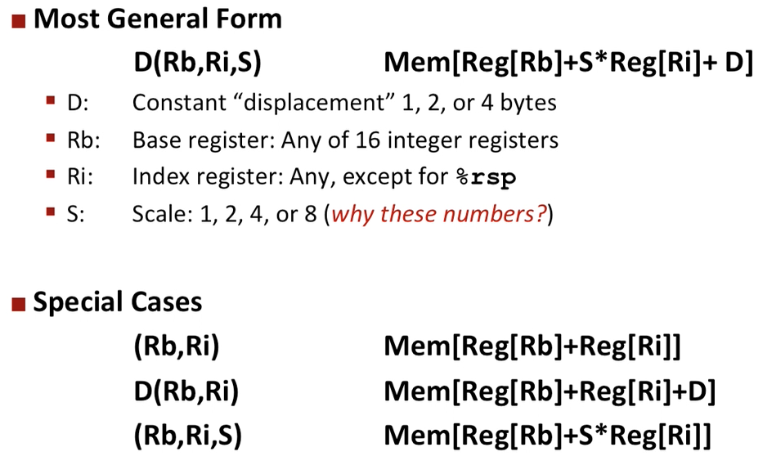

Complete Memory Addressing Modes

배열 주소에서 사용되는 방식

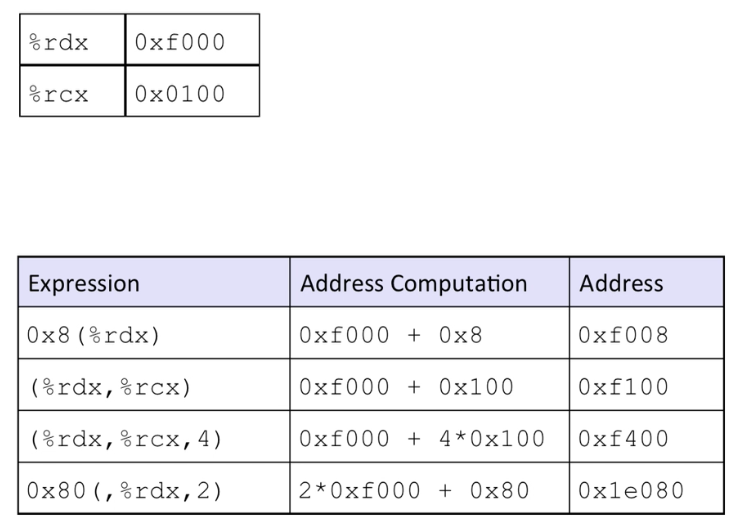

Address Computation Examples





Arithmetic & logical operations

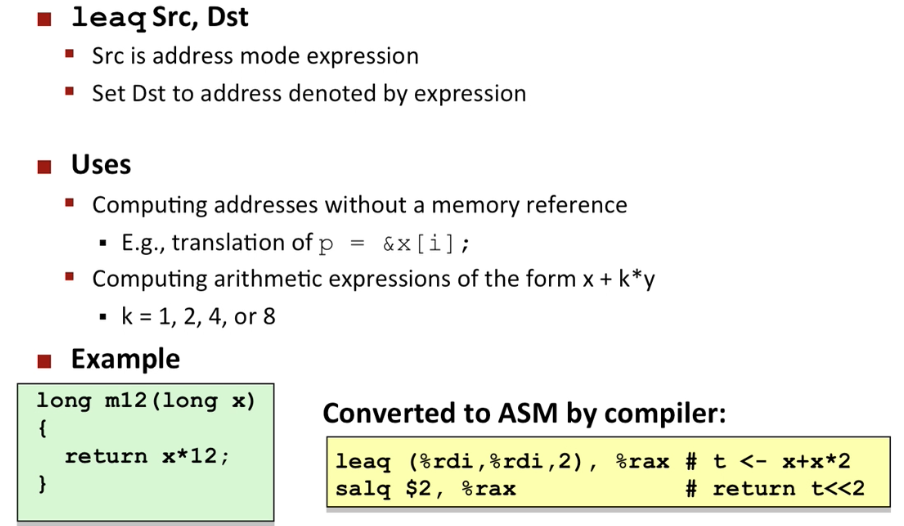

Address Computation Instruction

3배 해주고 2배 해주는 방식으로 컴파일

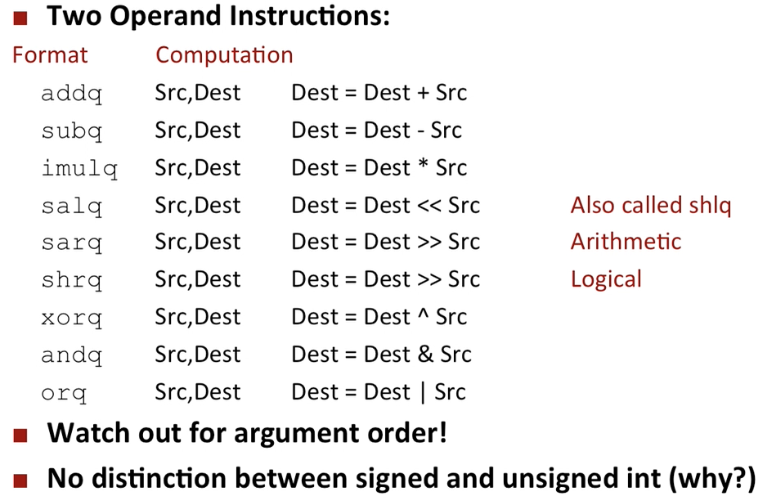

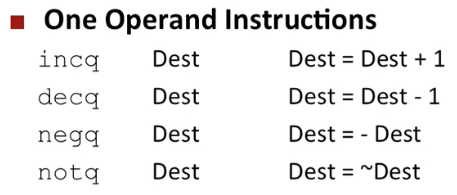

Some Arithmetic Operations

Src는 앞, Dest는 뒤라는 것을 알아두자

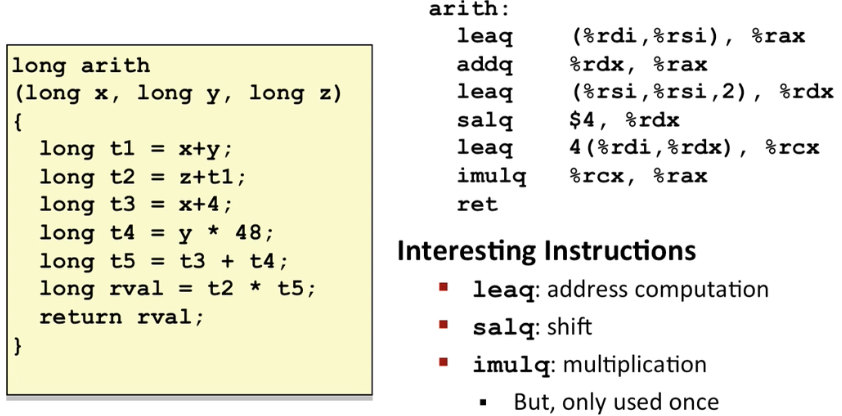

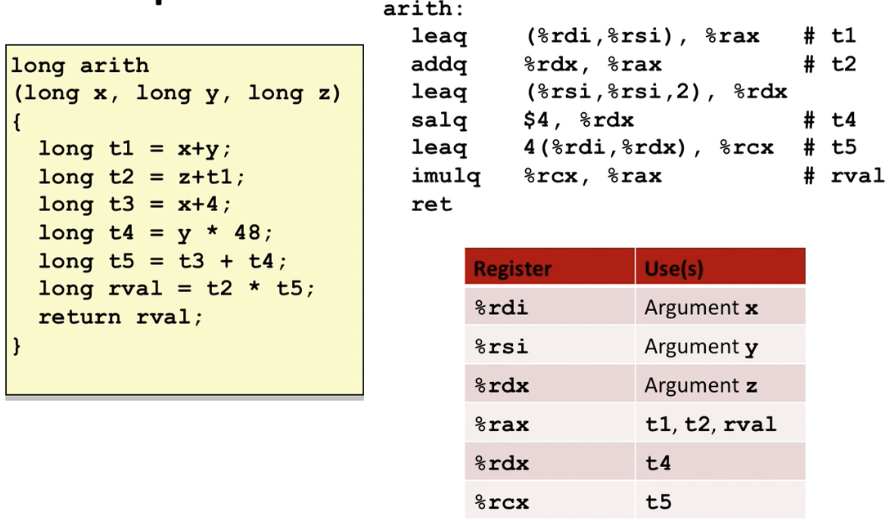

Arithmetic Expression Example

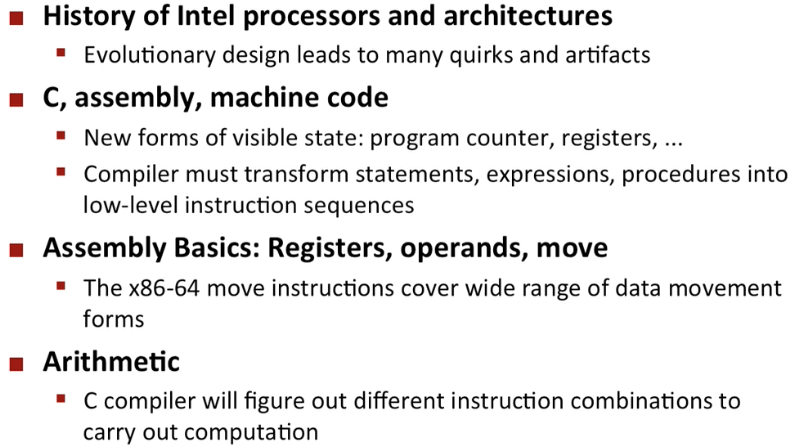

Summary
