K Fractional Binary Numbers

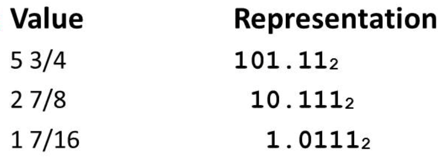

Representable Numbers
Limitation 1
- Can only exactly represent numbers of the form x / 2^k
- 다른 숫자들은 무한 소수가 된다
Limitation 2
- Just one setting of binary point within the w bits
- 소수점을 왼쪽으로 옮기면 큰 수를 나타낼 수 없고, 오른쪽으로 옮기면 소수점 자리를 자세하게 나타내지 못한다

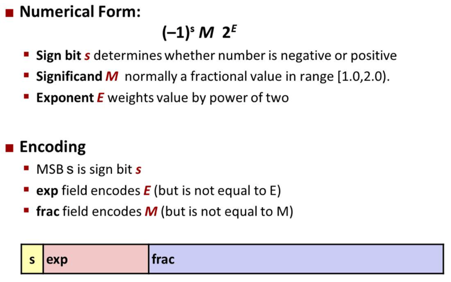

Floating Point Representation

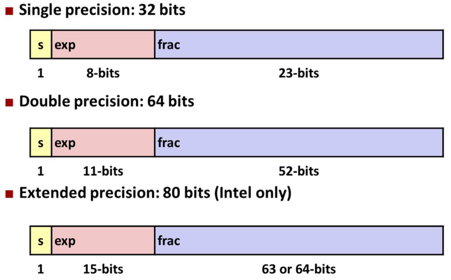

Precision Options

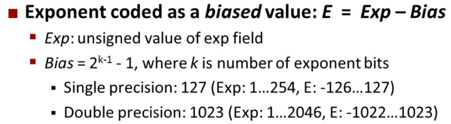

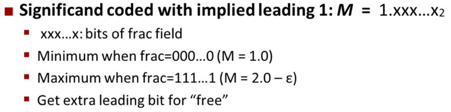

Normalized Values
- When : exp != 0000...0 and exp != 1111...1

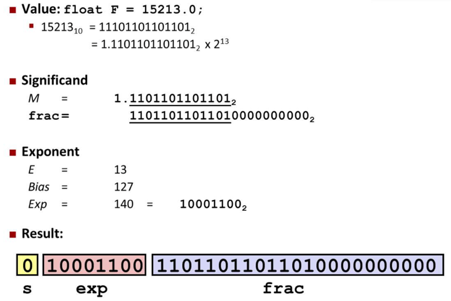

Normalized Encoding Example

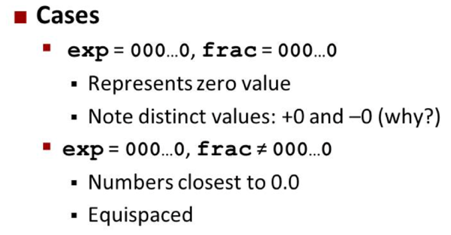

Denormalized Values
- Condition : exp = 0000...0
- Exponent Value : E = 1 - Bias
- Significand coded with implied leading 0 : M = 0.xxx...xx (2)

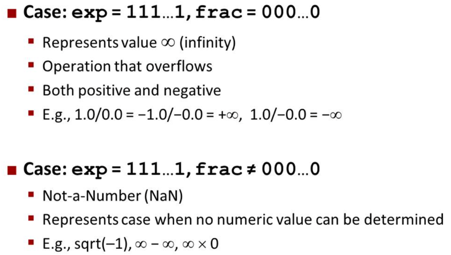

Special Values
- Condition : exp = 1111...1

Visualization : Floating Point Encodings

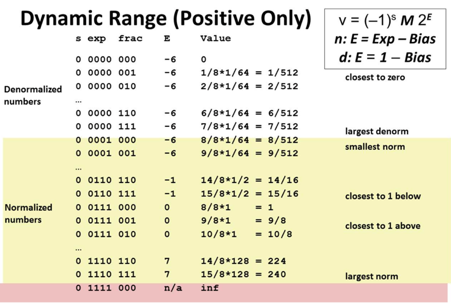

s, exp, frac 값으로 E와 Value 계산해보기

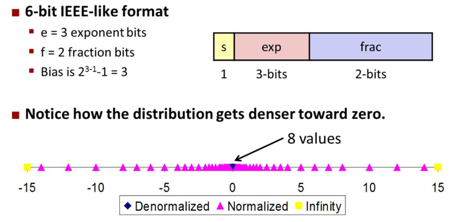

Distribution of Values


Floating Point Operations : Basic idea
Basic Idea
- First compute exact result
- Make it fit into desired precision

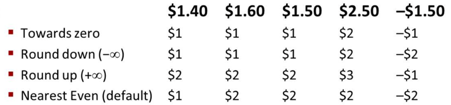

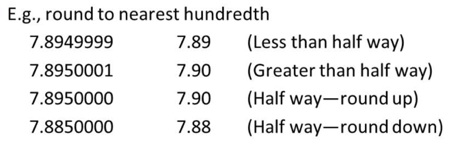

Rounding modes

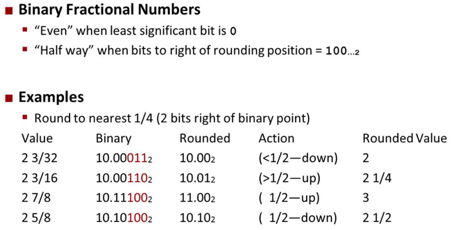

Rounding Binary Numbers

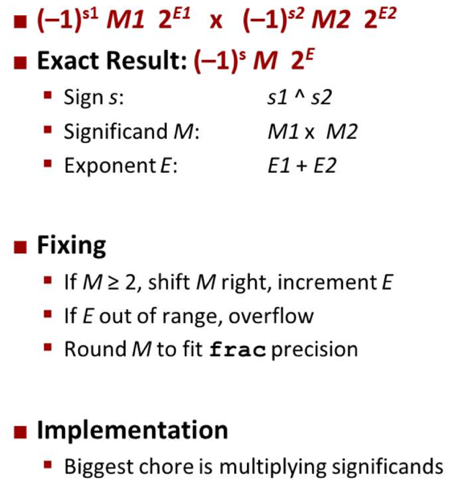

FP Multiplication

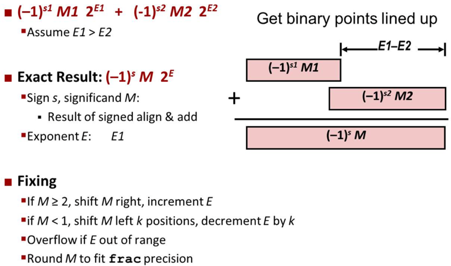

Floating Point Addition

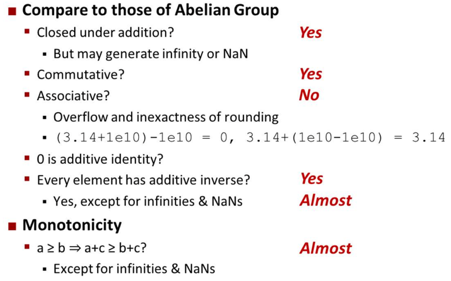

Mathematical Properties of FP Add

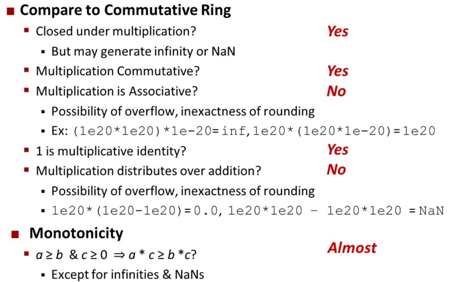

Mathematical Properties of FP Mult

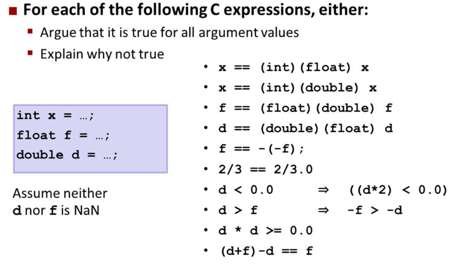

Floating Point Puzzles

1. NO – not enough frac bit
2. YES
3. YES
4. NO – not enough frac bit
5. YES
6. NO – 2/3은 0이다
7. YES – overflow 되더라도 negative infinity쪽으로
8. YES
9. YES
10. NO – lack of associative
